Danfoss VLT AutomationDrive FC 302 Repair
The Danfoss VLT AutomationDrive FC 302 is a variable frequency drive used to control AC motor speed and torque in pumps, fans, conveyors, process equipment, and production machinery.
| Brand | Danfoss |
| Equipment | FC-302P1K5T5E20H2XGCXXXSXXXXA0BXCXXXXDX |
| Equipment Category | VLT AutomationDrive FC 302 |
| Industry | Plastics |
| Fault Reported |
|
| Repair Turnaround Time | Typical reference: 3–6 working days |
The Challenge
The driven motor could not run reliably, stopping a critical machine function and increasing production downtime.
Diagnosis
- The input stage, DC bus, pre-charge circuit, IGBT power section, gate drivers, current sensing, cooling system, and control board were inspected.
Our Solution
- Defective power or control components were replaced as required, cooling and connection issues were corrected, boards were cleaned, and the drive was functionally tested with a motor.
1. BEFORE

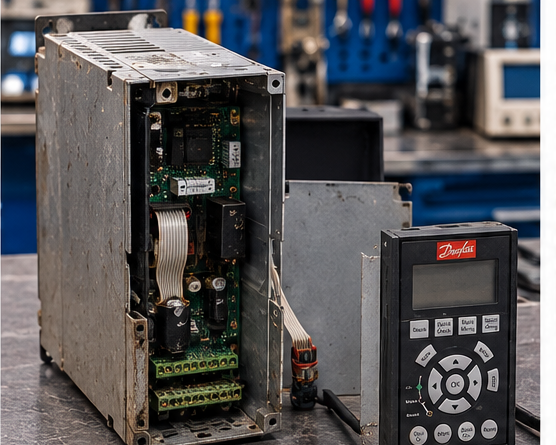

2. DISASSEMBLY

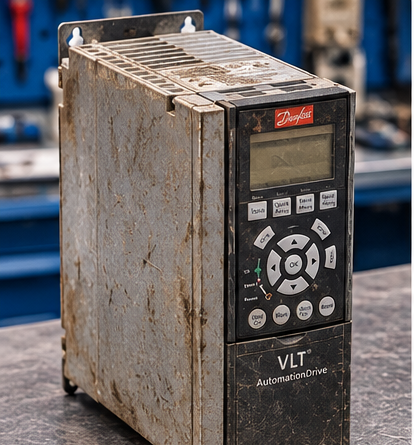

3. INSPECTION

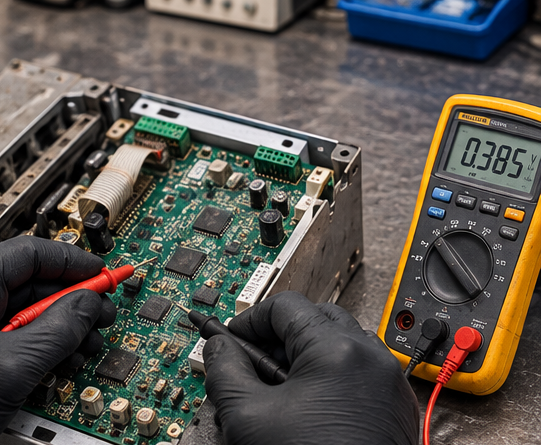

4. FUNCTIONAL TESTING
Testing Performed
- Input inspection; DC-bus test; power-stage test; motor rotation test; current monitoring; fault-reset test; thermal and burn-in test.
Final Result
The reference repair process restores normal functional operation after the unit passes the defined electrical, communication, motion, or load checks applicable to the equipment.
Common Fault Codes & Causes
- Alarm 4 – Mains phase loss: Missing input phase, input fuse or mains imbalance.
- Alarm 7 – DC overvoltage: High DC-link voltage caused by mains overvoltage or regenerative energy.
- Alarm 8 – DC undervoltage: Low mains voltage, phase loss or supply interruption.
- Alarm 9 – Inverter overloaded: Excessive load or prolonged high current causing thermal overload.
- Alarm 12 – Torque limit: Mechanical overload, jam or torque limit reached.
- Alarm 13 – Overcurrent: Peak current exceeded due to overload, rapid acceleration or motor/cable issue.
- Alarm 14 – Earth fault: Motor/cable insulation fault or leakage to ground.
- Alarm 16 – Short circuit: Short circuit in motor or motor wiring.
- Alarm 29 – Drive temperature: Drive thermal limit exceeded due to cooling/ambient/load issue.
- Alarm 30 – Motor phase U missing: Open output phase, cable/terminal or motor winding issue.
Preventive Maintenance
- Maintain clean cooling paths, verify motor load and cabling, inspect fans, protect against voltage disturbances, and keep the cabinet temperature within limits.
