Mitsubishi Electric FR Series Repair
The Mitsubishi Electric FR Series is a variable frequency drive used to control AC motor speed and torque in pumps, fans, conveyors, process equipment, and production machinery.
| Brand | Mitsubishi Electric |
| Equipment | FR-E540-2.2K-NA |
| Equipment Category | FR Series |
| Industry | Textile |
| Fault Reported |
|
| Repair Turnaround Time | Typical reference: 3–6 working days |
The Challenge
The driven motor could not run reliably, stopping a critical machine function and increasing production downtime.
Diagnosis
- The input stage, DC bus, pre-charge circuit, IGBT power section, gate drivers, current sensing, cooling system, and control board were inspected.
Our Solution
- Defective power or control components were replaced as required, cooling and connection issues were corrected, boards were cleaned, and the drive was functionally tested with a motor.
1. BEFORE

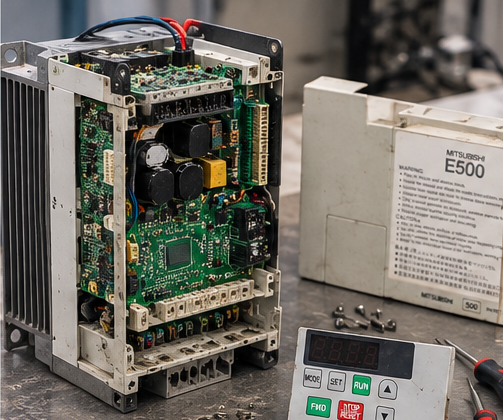

2. DISASSEMBLY
3. INSPECTION

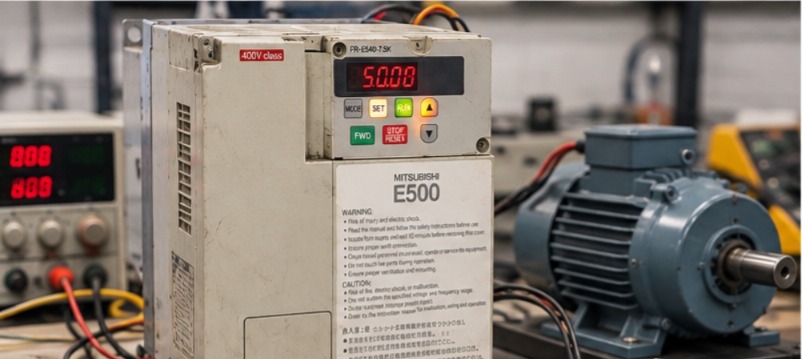

4. FUNCTIONAL TESTING
Testing Performed
- Input inspection; DC-bus test; power-stage test; motor rotation test; current monitoring; fault-reset test; thermal and burn-in test.
Final Result
The reference repair process restores normal functional operation after the unit passes the defined electrical, communication, motion, or load checks applicable to the equipment.
Common Fault Codes & Causes
- E.OC1 – Overcurrent during acceleration: Short circuit, overload or acceleration time too short.
- E.OC2 – Overcurrent at constant speed: Load change, motor/cable fault or power-stage issue.
- E.OC3 – Overcurrent during deceleration/stop: Regeneration, motor/cable issue or deceleration conditions.
- E.OV1 – Regenerative overvoltage during acceleration: High DC bus voltage or regeneration.
- E.OV2 – Regenerative overvoltage at constant speed: Regenerative load or supply/DC-bus issue.
- E.OV3 – Regenerative overvoltage during deceleration: Deceleration too fast or braking limitation.
- E.THT – Inverter overload: Drive thermal/electronic overload.
- E.THM – Motor overload: Motor thermal overload or incorrect thermal settings.
- E.FIN – Heatsink overheat: Cooling fan/airflow/ambient temperature problem.
- E.UVT – Undervoltage: Low input voltage, phase loss or supply interruption.
Preventive Maintenance
- Maintain clean cooling paths, verify motor load and cabling, inspect fans, protect against voltage disturbances, and keep the cabinet temperature within limits.
Related Services
- Industrial Electronics Repair; Servo Motor Repair; Servo Drive Repair; PLC/HMI/VFD Repair; PCB Repair
Need Professional Repair?
Mitsubishi Electric FR Series repair in Egypt for E.OC1, E.OC2, E.OC3 and other common faults. Professional diagnosis, repair and testing by EISAC Automation.
