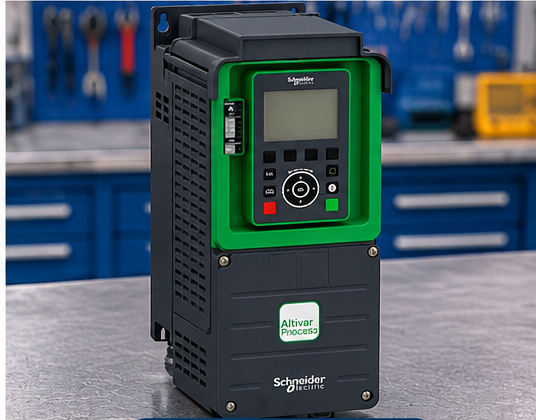

Schneider Electric Altivar ATV930 Repair
The Schneider Electric Altivar ATV930 is a variable frequency drive used to control AC motor speed and torque in pumps, fans, conveyors, process equipment, and production machinery.
| Brand | Schneider Electric |
| Equipment | ATV930U07M3 |
| Equipment Category | Altivar ATV930 |
| Industry | Water and wastewater |
| Fault Reported |
|
| Repair Turnaround Time | Typical reference: 3–6 working days |
The Challenge
The driven motor could not run reliably, stopping a critical machine function and increasing production downtime.
Diagnosis
- The input stage, DC bus, pre-charge circuit, IGBT power section, gate drivers, current sensing, cooling system, and control board were inspected.
Our Solution
- Defective power or control components were replaced as required, cooling and connection issues were corrected, boards were cleaned, and the drive was functionally tested with a motor.

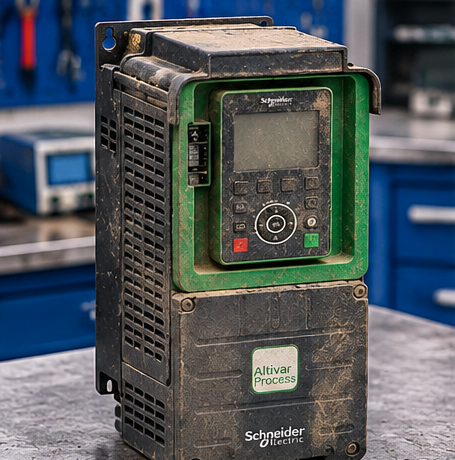

1. BEFORE

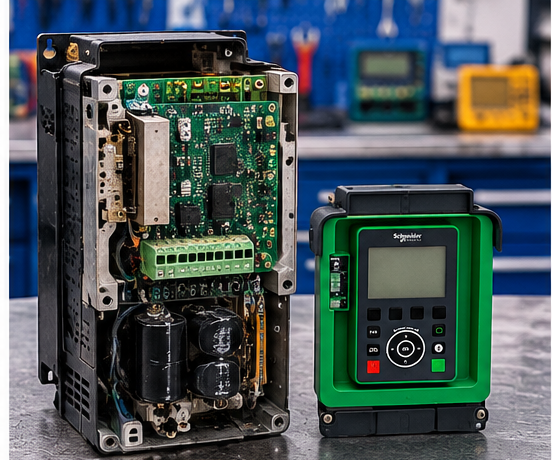

2. DISASSEMBLY

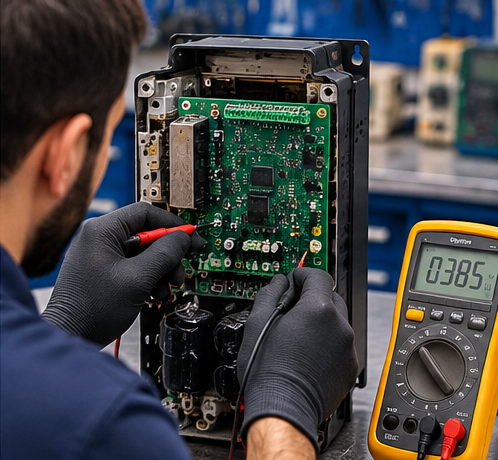

3. INSPECTION

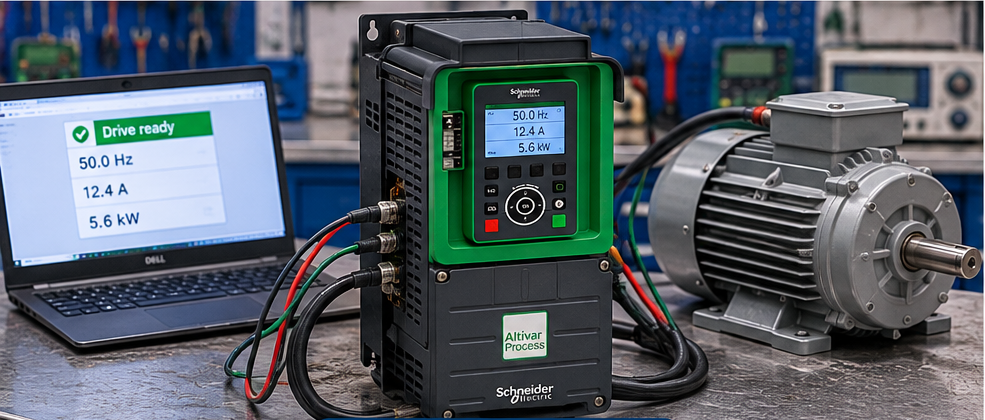

4. FUNCTIONAL TESTING
Testing Performed
- Input inspection; DC-bus test; power-stage test; motor rotation test; current monitoring; fault-reset test; thermal and burn-in test.
Final Result
The reference repair process restores normal functional operation after the unit passes the defined electrical, communication, motion, or load checks applicable to the equipment.
Common Fault Codes & Causes
- OCF – Overcurrent: Motor overload, short circuit, incorrect motor parameters or acceleration too fast.
- ObF – Overbraking / DC-bus overvoltage: Regenerative energy, deceleration too short or braking resistor issue.
- USF – Undervoltage: Low mains voltage, phase/supply drop or input power issue.
- OHF – Drive overheat: Cooling fan/airflow problem, high ambient temperature or overload.
- OLF – Motor overload: Excessive mechanical load, incorrect motor thermal settings or prolonged overload.
- OPF1 – One output phase loss: Open motor phase, loose terminal or damaged cable.
- PHF – Input phase loss: Missing mains phase, fuse or input wiring fault.
- SCF – Motor short circuit: Shorted motor/cable, insulation failure or power-stage problem.
- SLF – Communication fault: Network/fieldbus cable, configuration or communication timeout.
- InF – Internal fault: Internal electronics, control board or power-stage diagnostic fault.
Preventive Maintenance
- Maintain clean cooling paths, verify motor load and cabling, inspect fans, protect against voltage disturbances, and keep the cabinet temperature within limits.
