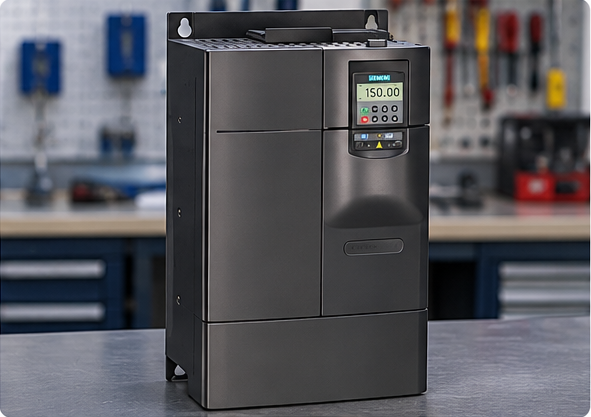

Siemens MICROMASTER 440 Repair
The Siemens MICROMASTER 440 is a variable frequency drive used to control AC motor speed and torque in pumps, fans, conveyors, process equipment, and production machinery.
| Brand | Siemens |
| Equipment Category | MICROMASTER 440 |
| Industry | Packing and paper |
| Fault Reported |
|
| Repair Turnaround Time | Typical reference: 3–6 working days |
The Challenge
The driven motor could not run reliably, stopping a critical machine function and increasing production downtime.
Diagnosis
- The input stage, DC bus, pre-charge circuit, IGBT power section, gate drivers, current sensing, cooling system, and control board were inspected.
Our Solution
- Defective power or control components were replaced as required, cooling and connection issues were corrected, boards were cleaned, and the drive was functionally tested with a motor.

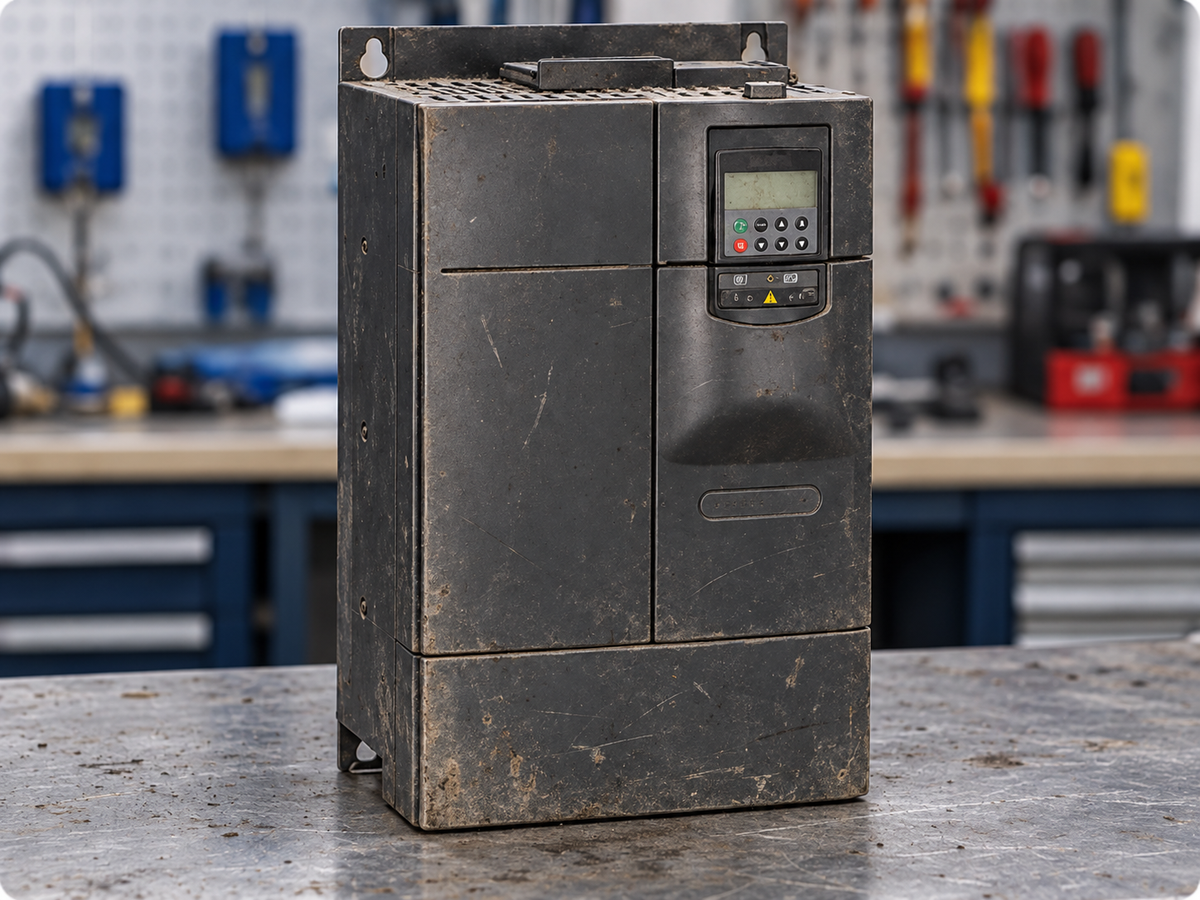

1. BEFORE

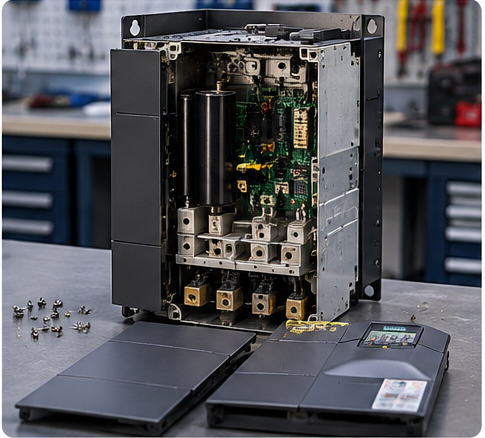

2. DISASSEMBLY
3. INSPECTION

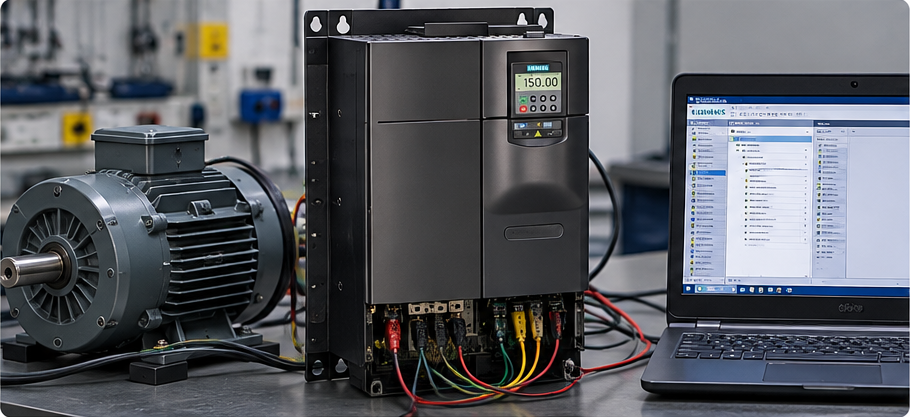

4. FUNCTIONAL TESTING
Testing Performed
- Input inspection; DC-bus test; power-stage test; motor rotation test; current monitoring; fault-reset test; thermal and burn-in test.
Final Result
The reference repair process restores normal functional operation after the unit passes the defined electrical, communication, motion, or load checks applicable to the equipment.
Common Fault Codes & Causes
- F0001 – Overcurrent: Motor/cable short circuit, earth fault, motor overload, incorrect motor data or short acceleration time.
- F0002 – Overvoltage: High mains voltage, regenerative operation, short deceleration time or braking limitation.
- F0003 – Undervoltage: Mains failure, low supply voltage or transient supply drop.
- F0004 – Inverter overtemperature: Fan failure, blocked ventilation, high ambient temperature or excessive load.
- F0005 – Inverter I2t: Drive overload, demanding duty cycle or motor power exceeding drive capability.
- F0011 – Motor overtemperature I2t: Motor overload, incorrect motor data or prolonged low-speed operation.
- F0020 – Mains phase missing: Input phase loss, blown fuse or supply wiring problem.
- F0021 – Earth fault: Motor/cable insulation failure or earth leakage on output.
- F0023 – Output fault: Output phase/power-stage problem, motor cable fault or damaged semiconductor.
- F0030 – Fan failure: Cooling fan blocked, worn, disconnected or failed.
Preventive Maintenance
- Maintain clean cooling paths, verify motor load and cabling, inspect fans, protect against voltage disturbances, and keep the cabinet temperature within limits.
Related Services
- Industrial Electronics Repair; Servo Motor Repair; Servo Drive Repair; PLC/HMI/VFD Repair; PCB Repair
Need Professional Repair?
Siemens MICROMASTER 440 repair in Egypt for F0001, F0002, F0003 and other common faults. Professional diagnosis, repair and testing by EISAC Automation.
